Mercedes Sprinter 2005 START ERROR Repair in Evesham

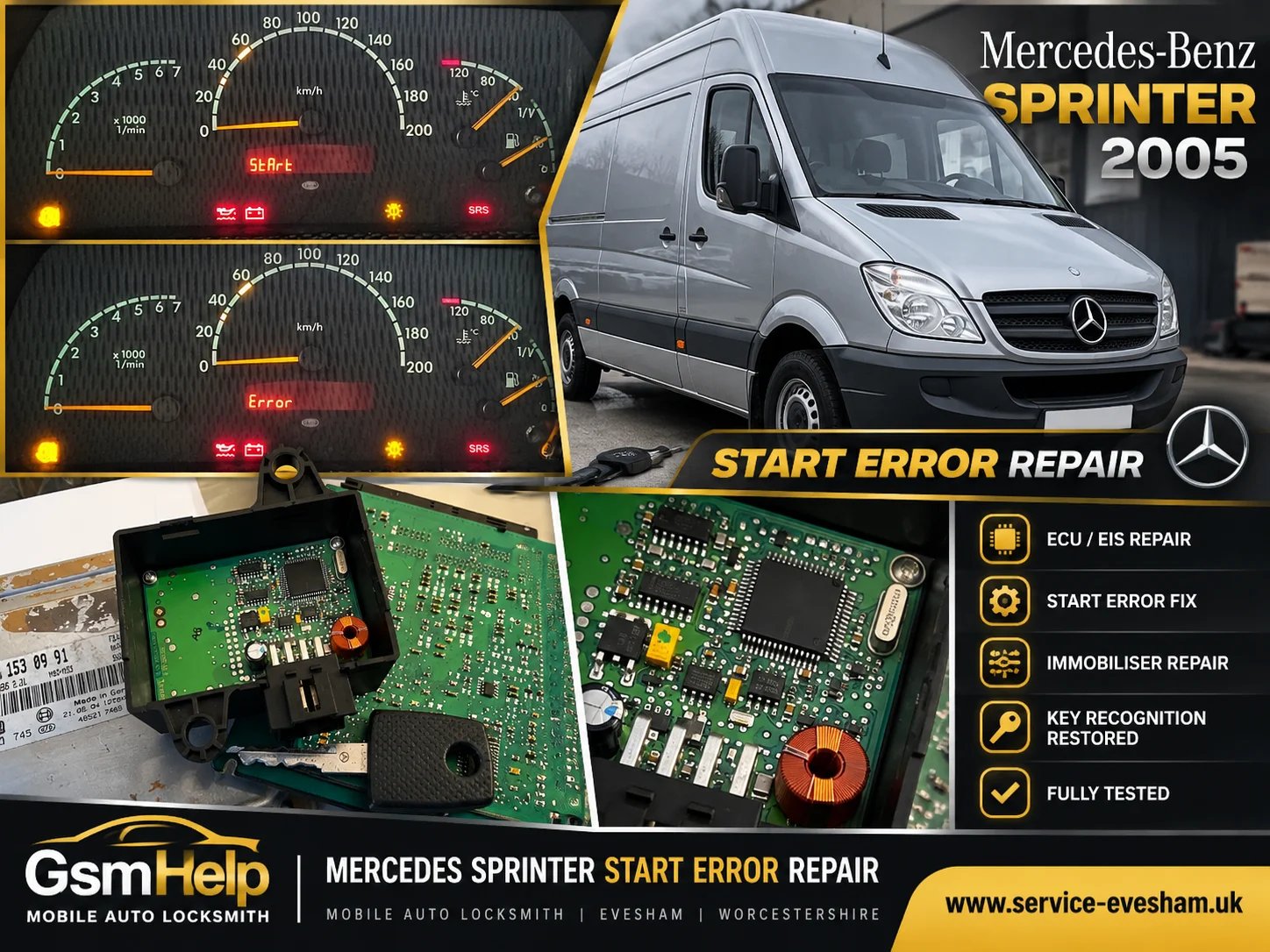

This 2005 Mercedes-Benz Sprinter T1N / W903 had developed the well-known START ERROR message on the instrument cluster, preventing the van from starting.
GsmHelp diagnosed the vehicle's immobiliser and drive-authorisation system and carried out the required electronic repair to restore communication and synchronisation between the transponder key, WSP immobiliser module and engine ECU.
On this generation of Mercedes Sprinter, START ERROR can occur when the immobiliser and engine control unit no longer complete the correct start-authorisation sequence. Battery voltage problems, a flat battery, jump starting, module replacement or an electronic fault can contribute to this condition. Specialist Sprinter repair services describe the same key → WSP/SKREEM → ECU synchronisation chain. Auto Module Lab
Symptoms of Mercedes Sprinter START ERROR
Typical symptoms can include:
- START ERROR displayed on the instrument cluster
- Engine will not start
- Key transponder not correctly authorised
- Immobiliser / WSP communication fault
- ECU and immobiliser synchronisation lost
- Intermittent starting followed by complete no-start
- Fault appearing after a flat or disconnected battery
The START ERROR message is a symptom of a failed drive-authorisation process rather than proof that one particular module is defective, so correct diagnosis is important before replacing components. Auto Module Lab
Mercedes Sprinter WSP / ECU Repair
For this Sprinter, the relevant electronic components were inspected and repaired as required, and the immobiliser and ECU synchronisation was restored.
The repair included:
- Mercedes Sprinter START ERROR diagnosis
- Transponder key recognition check
- WSP / immobiliser module testing
- Engine ECU communication checks
- Immobiliser and ECU synchronisation
- Electronic module repair as required
- Starting authorisation restored
- Final starting and system testing
Specialist repair services for this generation similarly work with the key, WSP/SKREEM immobiliser and ECM/ECU, rather than automatically replacing the entire system. Auto Module Lab
Mercedes Sprinter START ERROR Fault Codes
Diagnostic trouble codes vary according to the exact ECU, WSP and failure, so I would not claim that every START ERROR vehicle has one specific DTC.
Relevant Mercedes Sprinter diagnostic codes that may be encountered during a no-start investigation include, for example:
P1330-004 – Starter relay (K61), short circuit to voltage or ground
P1330-008 – Starter relay (K61), open circuit
P1330-016 – Attempt at starting without circuit 50
P1335-001 – Crankshaft sensor dynamic plausibility error
P1335-002 – Crankshaft sensor / overspeed detection; starter relay fault may be involved
These codes come from Sprinter diagnostic documentation, but importantly P1330 is not simply a universal “immobiliser START ERROR code.” It relates to the starter relay/circuit 50 conditions in the referenced Sprinter fault-code guide. DIY Sprinter
That distinction is worth keeping on your page because several online descriptions incorrectly collapse START ERROR into a single fault code.
Mercedes Sprinter Immobiliser Repair in Evesham
After repair and synchronisation, the Sprinter's start authorisation was restored and the vehicle was tested for correct starting operation.
This type of electronic repair can avoid unnecessary replacement of otherwise serviceable ECU and immobiliser components.
If your Mercedes Sprinter displays START ERROR and will not start, GsmHelp provides Mercedes Sprinter immobiliser repair, ECU diagnostics, key programming and automotive electronic repair in Evesham, Worcestershire and surrounding areas.
The related service is Auto locksmith. To ask about your own vehicle, use the contact page or call 07367 445008.
